5G MMW Communication
MMW (Millimeter Wave) communication platform, as one of the key technologies for 5G, with the characteristics of ultra-fast transmission rate, large bandwidth, and large transmission capacity, it is suitable for rapid deployment of all-day and all-weather backbone network communication in front-line environment, to construct fast information sharing of full-process and full-link for the “site-and-backyard”.
Features
Large bandwidth
10G, FDD full duplex link
Long effective distance
Can reach 10km
High mobility
Small size, host weight <6kg
Support high-speed movement
Can support up to 1000km/h
Low latency
0.2ms<1ms
Switching time
135μs<1ms
Applications

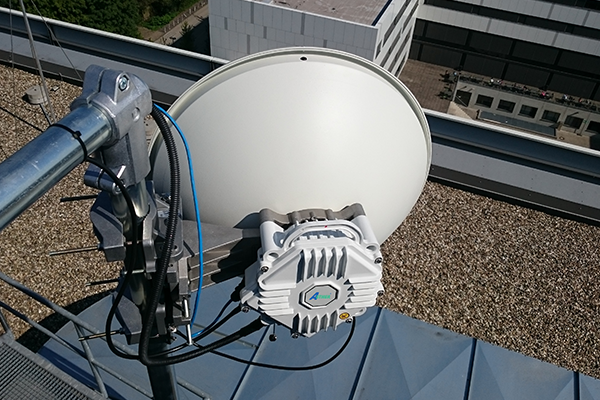

Wireless transmission in campus

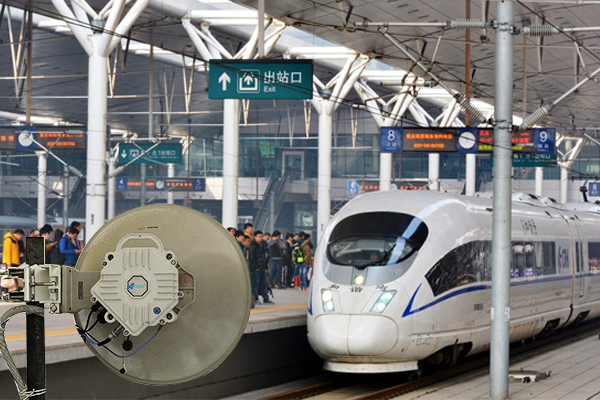

Train-to-ground wireless transmission

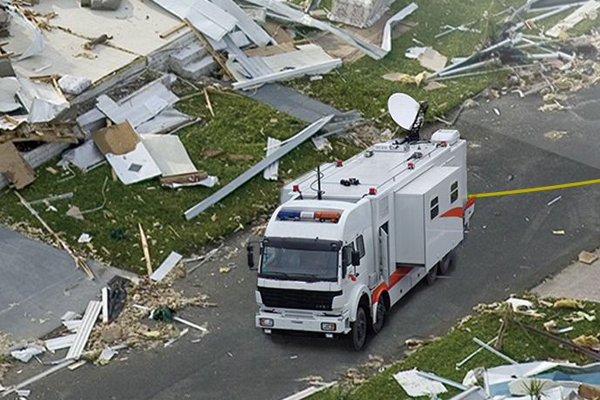

Emergency wireless communication for disaster rescue

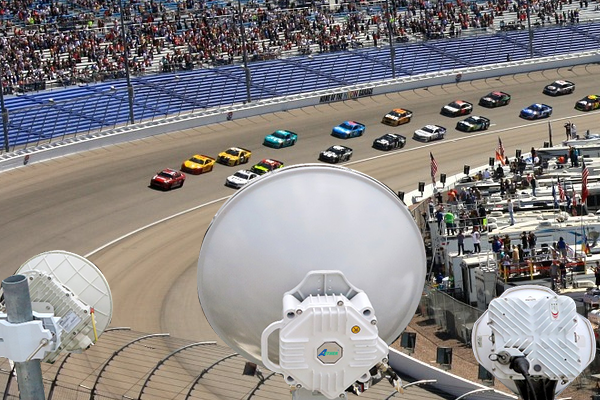

HD live broadcasting of sport events
Specifications
| Technical indicators | Q-band | E-band |
| Frequency band | Q-band (40.5-43.5GHz) | E-band (71-76/81-86GHz) |
| Transmission rate | 6 Gbps (one-way) | 10 Gbps (one-way) |
| Operation mode | FDD full duplex | FDD full duplex |
| Bandwidth | 1250MHz | Adaptive, 500MHz, 1000MHz, 2000MHz |
| Modulation/demodulation | QPSK | Adaptive, BPSK, QPSK, 16QAM, 64QAM, 128QAM |
| Clear sky (antenna Ф300) | >5km (3 miles) | >10km (6 miles) |
| AC power input | 88-132/176-264V, 50/60Hz | 88-132/176-264V, 50/60Hz |
| Transceiver power consumption | 35W (can exceed 60W with heater turned on) | 35W (can exceed 60W with heater turned on) |
| DC power | 36-72V | 36-72V |
| IP grade | IP65 (IP68 for option) | IP65 (IP68 for option) |
| Operating temperature | -40℃—50℃/-40°F—122°F | -40℃—50℃/-40°F—122°F |
| Overall dimension | 340*230*120mm | 340*230*120mm |
| Weight (ODU) | Max. 6 kg | Max. 6 kg |
| MTBF | 150,000h | 150,000h |
