Introduction

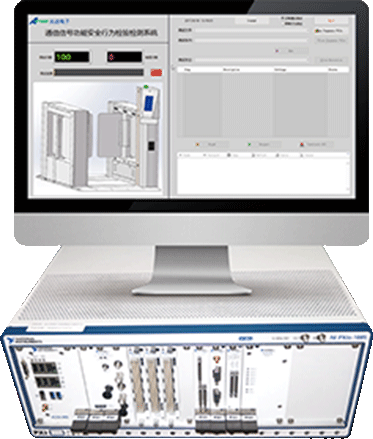

Rail Transit Industrial Control Safety Platform
For the key control systems of signaling and train control, traction and power feeding, integrated monitoring, etc., AETHER rail transit industrial control safety platform restores the application scenarios and the whole life cycle, builds holographic modeling for safety baseline, so as to provide technical criteria for the testing and qualification of industrial control products before market access, and provide service support for operation and maintenance sectors for remote fault diagnosis and maintenance.
Features
Online scenario wave recording playback
Operational scenario excitation and acquisition, wave recording test auto playback, response data dual mapping
Build benchmarks for behavior safety
Build control function command library, command signal template extracting, build excitation and response template library
Potential risk assessment and analysis
Excitation signal recognition and positioning, dual signal search and tracking, response signal recognition
Applications

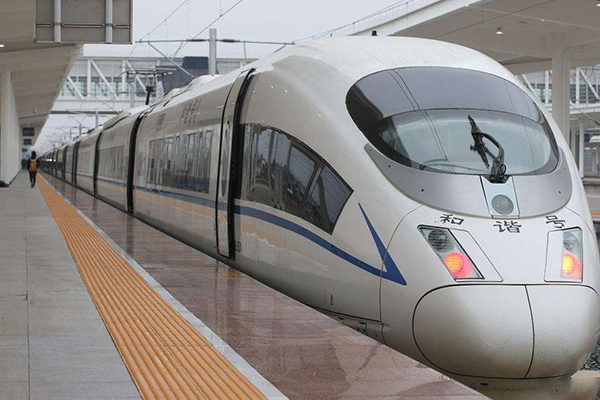

Rail transit

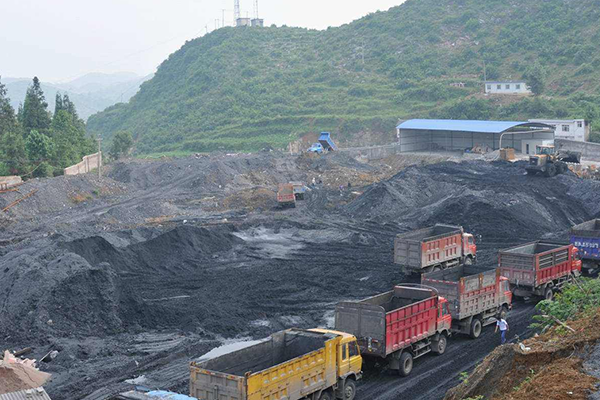

Coal plant

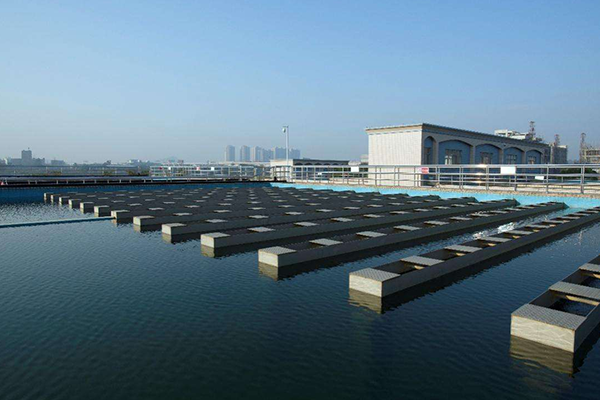

Water treatment plant

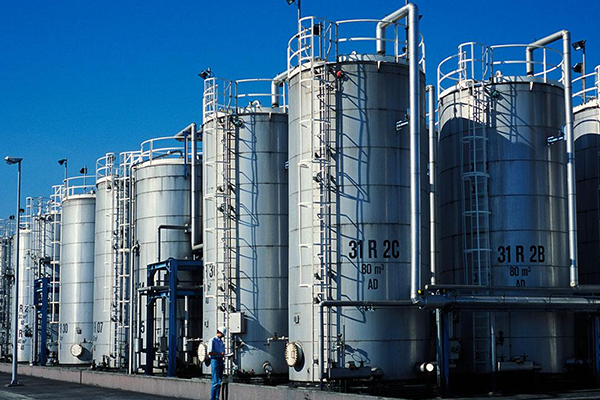

Petroleum plant
Specifications
| Item | Parameter |
| System bandwidth (per direction) | Up to 24 GB/s |
| Analog input maximum sampling rate | 2 MS/s/ch |
| Analog output maximum refresh rate | 3.3 MS/s |
| Time accuracy | 50 ppm/time |
| Analog input channels | 16-channel AI (16-bit, 2 MS/s/ch); input range ±10V-±1 V |
| Analog output channels | 4-channel AO (16-bit, 3.33 MS/s); output ±10 V |
| DIO channels | 48-channel DIO (5 V TTL line); 32 hardware timers, max. 10 MHz |
