Introduction

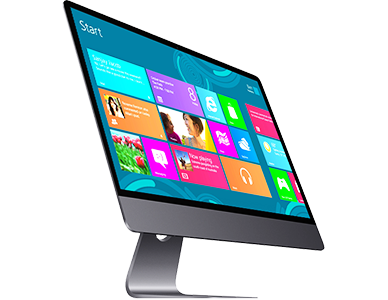

Security Computer
The security computer is a trusted and intelligent computing terminal with the functions of computing and protection. Based on the protection of hardware encryption chip authentication, it carries out real-time monitoring and scanning for ports, and constructs a complete trust chain for switching, application execution, and peripheral ports control, so as to implement overall control for the computing behaviors of the internal network and the external network, and thoroughly protect the confidentiality and integrity of high-level network systems.
Features
Dual-system
Dual-system architecture ensures thoroughly physical isolation
Secure switching
Dynamic password authentication for security switching
Secure control
Security control for incoming external communications
Internal and external sharing
Shared display and touch screen for dual-network
Applications
Isolation of secrets-involved network and non-secret-involved network for government

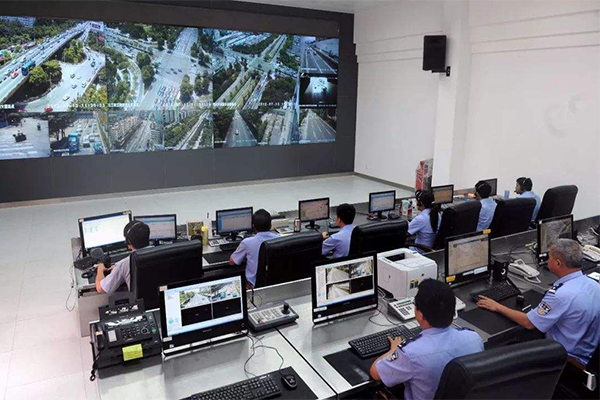

Isolation of intranet and public service network for public security department
Isolation of intranet and public service network for hospital
Isolation of intranet and public service network for bank
Specifications
| Item | Technical indicator | Basic parameters |
| LCD | Image area | 21.5inch |
| Aspect ratio | 16.9 | |
| Color | 16.7 million colors | |
| Contrast ratio | 20,000,000 : 1 (dynamic) | |
| Brightness | ≥ 200 candelas per square meter | |
| Viewing angle | Horizontal:170°, vertical:170° | |
| Response time | 6ms GtG (bw) dot | |
| Resolution | 1920×1080mm | |
| Screen life time | > 50,000 hours | |
| Video level | 0.7Vp-p | |
| Synchronization mode | Separation, compound, SOG | |
| Pixel pitch | 0.24795(H) × 0.24795(V) mm | |
| Operating temperature | 0-50℃ | |
| Touch screen | Size | 21.5inch |
| Touch technology | Capacitance (G+G) | |
| Touch type | 10 point touch | |
| Embedded mode | Front embedded (can be maintained in the front) | |
| Drive mode for touch | HID driveless | |
| Material for writing surface | Physical toughened glass | |
| Touch screen induction mode | Finger, stylus | |
| Touch screen positioning resolution | 4096×4096mm | |
| OS supported by intranet mode | Windows, Linux, Android, MAC | |
| Positioning accuracy | ≤±2mm | |
| Anti-interference | Incandescent lamp (220V, 100W), with a vertical distance ≥350m, the illuminance of sunlight is up to 90000Lux | |
| Configurations | Interface | HDMI-IN × 1, standard USB2.0 × 2 ( one for mouse, one for keyboard), MINI USB2.0 × 1 (used to connect intranet host), Micro USB2.0 × 1 (used for management system upgrade), RJ45 × 1 |
| Common interface | DC in 12V 4A | |
| Decoding resolution | Support 1080P Max | |
| Vide playing | Support MPEG1, MPEG2, MPEG4, H.264, WMV | |
| Stereo speaker | 2×8W | |
| Overall power | <48W | |
| System switching button | Used for switching between intranet mode and Internet mode |
